Duva
Deep Ultra Violet Analyser
GC-UV
Gas Chromatography – Ultra Violet with spectral of short wave lengths of light as a chemical analytical method was first discovered by Dr. Kaye in 1962. From early 1980-ies Dr. Verner Lagesson and licentiate Lagesson-Andrasko have been developing the technology and methods. From 2010 a new technical generation started to emerge, developed by a dedicated team to meet the highest up to date standards and requirements.
Short data
The DUVA 1 is a detector unit designed to operate with any GC. The control interface has in its basic version been adapted to an Ellutia 200 GC. Gas supply to GC-unit controlled through the GIU and interchangeable connections on the rear panel for N2 and He2.
Light pipe: > 10 μ litre volume in interchangeable assembly. Temperature control from ambient to 240°C +- 1°C. UV light source: User Interchangeable
________________________________________________________________________
Preliminary data:

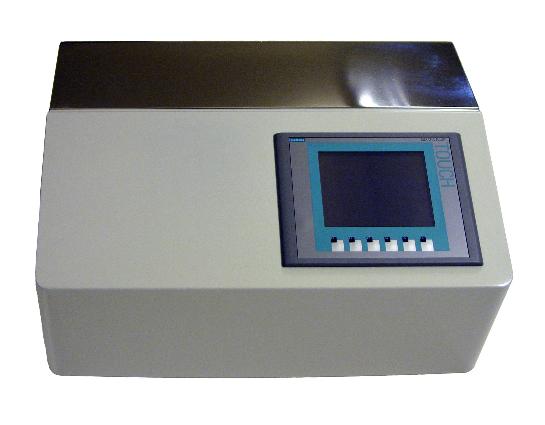

The DUVA 1 is a detector unit designed to operate with any GC.
The control interface has in its basic version been adapted to an Ellutia 200 GC with heated transfer line (www.ellutia.com)
Other interfaces upon customer request.

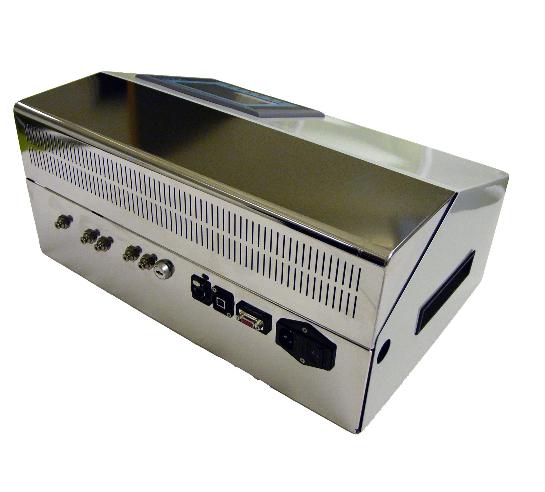

Gas supply to GC-unit controlled through the GIU and interchangeable connections on the rear panel for N2 and He2.
Light pipe: > 10 ? litre volume in interchangeable assembly.
Temperature control from ambient to 200°C within +- 1°C
UV light source: User Interchangeable
Flush gas flow: >50 ml/minute
Flush time: 0-30 minutes
Flow purge / carrier gas: Mass flow control 0,1 – 10 ml/minute

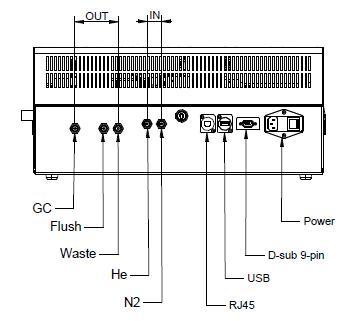

Connection scheme: See above
USB and LAN connetions to standard PC.
Software included that generates absorbtion and setting data in MS Excel format.
Casing: Aluminium chassie and powder painted stainless steel cover.
Fan operates at temperatures above 22 °C.
Power: 110 – 240V, 50-60 Hz, >100VA
Standard 500 mA fuse by the main switch at the rear.

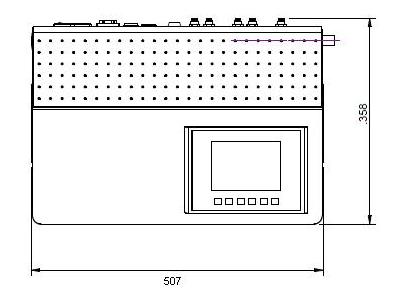

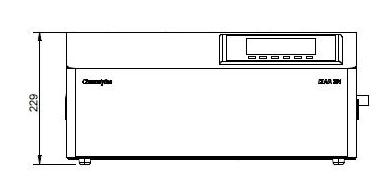

Dimension: See above
Weigth: 15Kg
